• Double-Side Adhesive Tape Optical Tape Series Protective Film Series Functional Tape Series Graphite Sheets Series

    GRAPHITE SHEET SERIES

    ? Good heat conductivity

    ? Good composition with various tapes and insulation materials for various die-cutting shapes

    ? Excellent adhesion properties with metal or plastic components after gumming



    Product Introduction Product Applications Product structures Performance Parameters Details Description

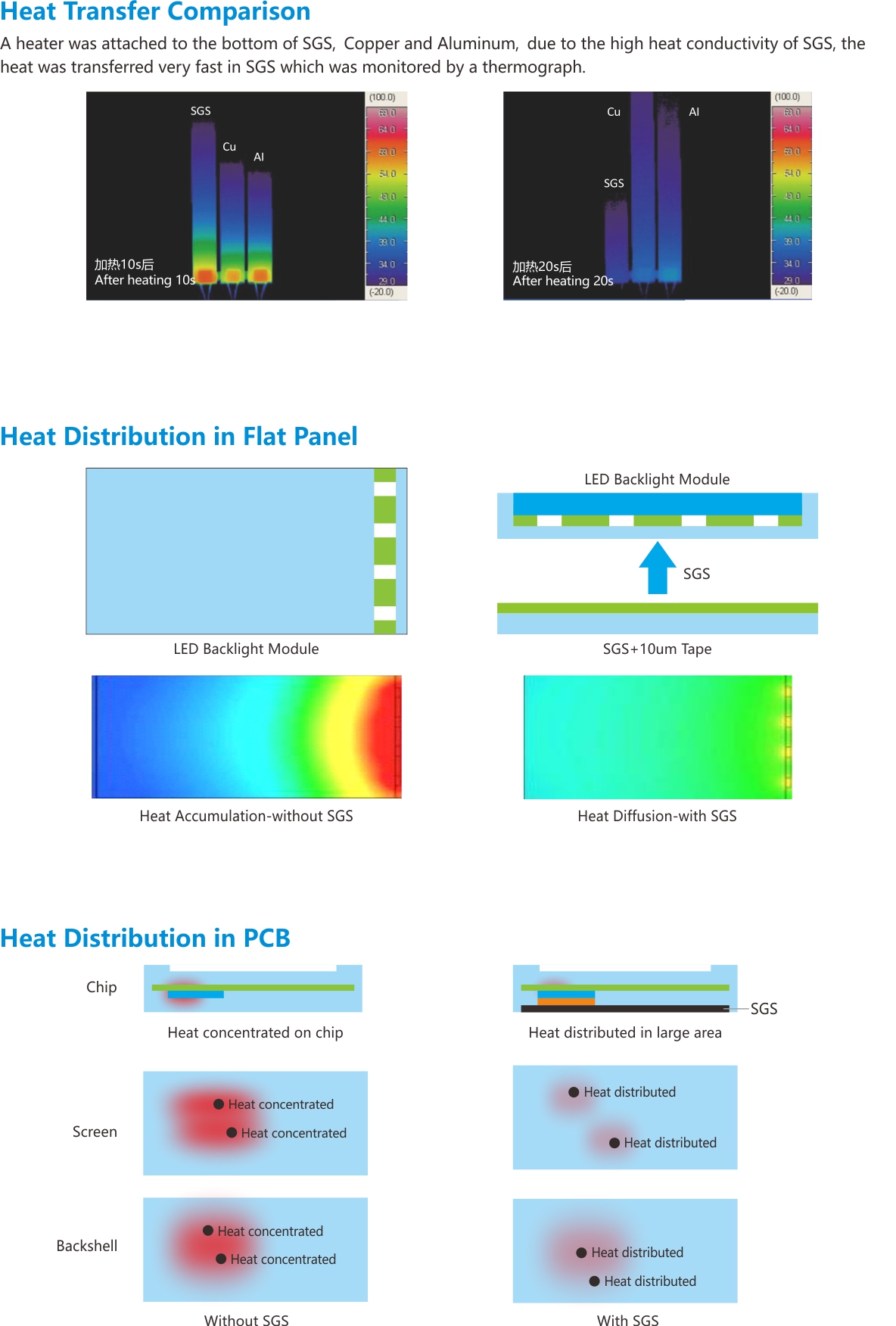

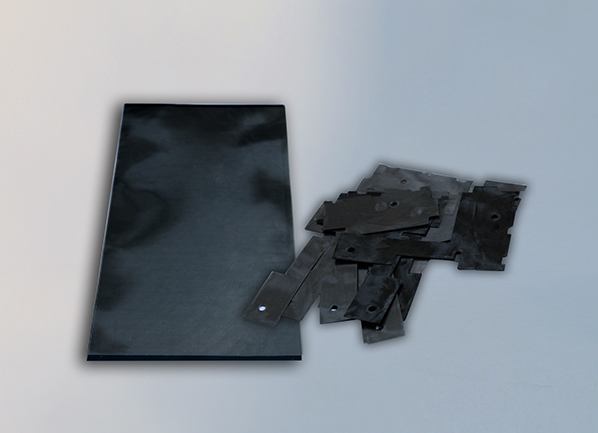

    Selen Graphite Sheet (SGS) are made by decomposing PI films at high temperature, which have excellent heat conductivity and flexibility. Due to the unique crystal lattice orientation and lamellar structure, SGS can be used to shield heat for various surfaces and consequently improve the performance of  electronic products.



    Back

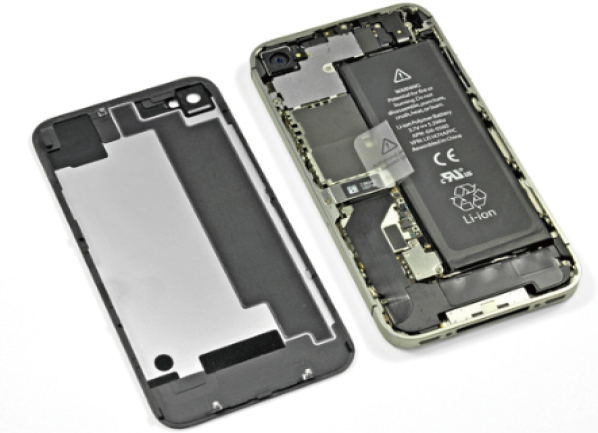

    ? 3C, LED, LCD, Vehicle Electronics, batteries

    ? Semiconductor manufacturing equipments

    ? Optical /communication Equipments
